Connect to a CSS Alarm Server. More...

#include <alarmserverconnector.h>

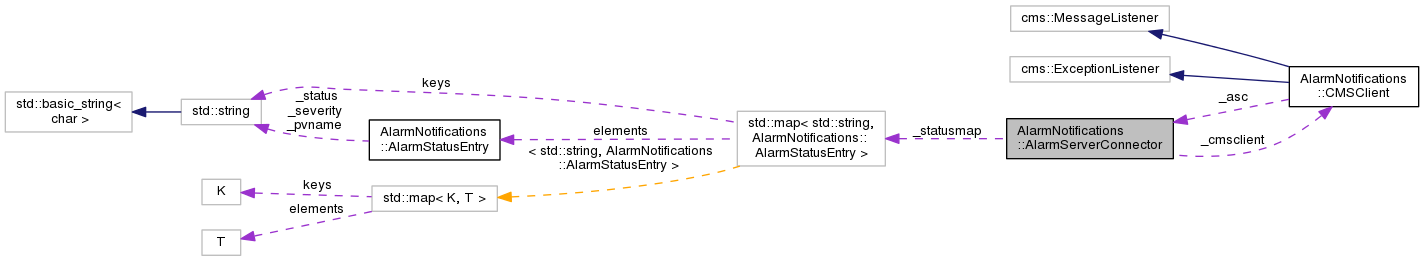

Collaboration diagram for AlarmNotifications::AlarmServerConnector:

Public Member Functions
	AlarmServerConnector (const bool desktopVersion=false, const bool activateBeedo=false)
	Constructor. More...

	~AlarmServerConnector ()
	Destructor. More...

	AlarmServerConnector (const AlarmServerConnector &other)=delete
	Copy constructor (deleted) More...

	AlarmServerConnector (AlarmServerConnector &&other)=delete
	Move constructor (C++11, deleted) More...

AlarmServerConnector &	operator= (const AlarmServerConnector &other)=delete
	Copy assignment (deleted) More...

AlarmServerConnector &	operator= (AlarmServerConnector &&other)=delete
	Move assignment (C++11, deleted) More...

void	notifyStatusChange (const AlarmStatusEntry status)
	Notify AlarmServerConnector about alarm status change. More...

size_t	getNumberOfAlarms () const noexcept
	Query number of active alarms. More...

Private Member Functions
bool	checkSeverityString (const std::string &severity)
	Check severity string in CSS Alarm Server message. More...

void	startWatcher ()
	Start the watcher thread. More...

void	checkStatusMap ()
	Check the _statusmap for pending notifications. More...

void	operateFlashLight ()
	Operate the red flashlight in the laboratory. More...

void	switchFlashLightOn ()
	Switch laboratory flashlight on. More...

void	switchFlashLightOff ()
	Switch laboratory flashlight off. More...

void	prepareDesktopNotification ()
	Select alarms to be included in a desktop notification. More...

void	sendDesktopNotification (const std::vector< AlarmStatusEntry > alarm)
	Fire desktop notification. More...

void	prepareEMailNotification ()
	Select alarms to be included in an e-mail notification. More...

void	sendEMailNotification (const std::vector< AlarmStatusEntry > alarm)
	Fire desktop notification. More...

Private Attributes
const bool	_desktopVersion
	Desktop version flag. More...

const bool	_activateBeedo
	Beedo flag. More...

CMSClient	_cmsclient
	ActiveMQ client instance. More...

std::map< std::string, AlarmStatusEntry >	_statusmap
	Map of active alarms. More...

boost::mutex	_statusmapmutex
	Mutex to protect the _statusmap. More...

boost::mutex	_flashlightmutex
	Mutex to protect the flashlight accessed. More...

bool	_runwatcher
	Watcher thread abortion flag. More...

bool	_flashlighton
	Flashlight status flag. More...

boost::thread	_watcher
	Notification thread. More...

boost::thread	_flashlightthread
	Flashlight operation thread. More...

time_t	_oldestAlarm
	Timestamp of oldest alarm in _statusmap. More...

Static Private Attributes
static const time_t	noAlarmActive = std::numeric_limits<long int>::min()
	Time of last alarm if no alarm is active. More...

Detailed Description

Connect to a CSS Alarm Server.

This class connects to the CSS Alarm Server using the class CMSClient and evaluates the messages of the alarm server received by the client class. This class will create a map of all active alarms and - if the alarms are active long enough - it will initiate notifications to alert the user about the alarm in the laboratory. Three different types of notifications are available: The first one is the laboratory notification, where a red flashlight in the lab will alert the people working there. The second one is a desktop notification on the office computers while the third one sends an e-mail to a mailing list.

This class can operate in either server or desktop mode. The server mode instance will run in the lab and provide the flashlight and e-mail notifications - while a desktop notification is still possible, e.g. on the server terminal. The desktop version will run on an office PC and do only desktop notifications. In addition, the desktop version can use the Beedo engine where in addition to the notification an opto-acoustic alarm will be shown on the desktop. This feature is intended to be used on a control room computer during beamtime.

Definition at line 63 of file alarmserverconnector.h.

Constructor & Destructor Documentation

AlarmServerConnector::AlarmServerConnector	(	const bool	desktopVersion = `false`,
		const bool	activateBeedo = `false`
	)

Constructor.

Intializes the CMSClient and the libnotify framework on systems with libnotify version >= 0.7. It spawns two additional threads that run startWatcher() and operateFlashLight() respectively.

Parameters

desktopVersion	Flag to indicate whether this instance should run as desktop version (true) or server version (false).
activateBeedo	Flag to indicate whether the Beedo engine should be used. Only possible on a desktop version.

Exceptions

std::logic_error activateBeedo is true but desktopVersion is false. The Beedo engine can only be used with the desktop version.

Definition at line 55 of file alarmserverconnector.cpp.

AlarmServerConnector::~AlarmServerConnector ( )

Destructor.

Sets the _runwatcher flag to false and waits for the two threads (_watcher and _flashlightthread) to finish their loops.

Definition at line 72 of file alarmserverconnector.cpp.

AlarmNotifications::AlarmServerConnector::AlarmServerConnector ( const AlarmServerConnector & other )

delete

Copy constructor (deleted)

This class cannot be copied.

Parameters

other Another instance of AlarmServerConnector

AlarmNotifications::AlarmServerConnector::AlarmServerConnector ( AlarmServerConnector && other )

delete

Move constructor (C++11, deleted)

This class cannot be moved.

Parameters

other Another instance of AlarmServerConnector

Member Function Documentation

bool AlarmServerConnector::checkSeverityString ( const std::string & severity )

private

Check severity string in CSS Alarm Server message.

Analyse the string and return whether it announces an alarm or the removal/acknowledgement of an alarm.

Parameters

severity The severity parameter as recevied from the CSS alarm server.

Returns: True if alarm is active, false if it is cleared

Definition at line 103 of file alarmserverconnector.cpp.

void AlarmServerConnector::checkStatusMap ( )

private

Check the _statusmap for pending notifications.

Checks if there is any alarm over the timeout and initiates the appropriate notifications if necessary. On desktop versions also controls the Beedo engine.

Returns: Nothing

Definition at line 121 of file alarmserverconnector.cpp.

size_t AlarmServerConnector::getNumberOfAlarms ( ) const

noexcept

Query number of active alarms.

Number of alarm entries in the _statusmap.

Returns: Number of active alarms.

Definition at line 264 of file alarmserverconnector.cpp.

void AlarmServerConnector::notifyStatusChange ( const AlarmStatusEntry status )

Notify AlarmServerConnector about alarm status change.

This method is invoked by CMSClient to notify this instance about a message received from the CSS Alarm Server.

Parameters

status Relevant content of the message put into an AlarmStatusEntry

Returns: Nothing

Definition at line 82 of file alarmserverconnector.cpp.

void AlarmServerConnector::operateFlashLight ( )

private

Operate the red flashlight in the laboratory.

Calls switchFlashLightOn() and switchFlashLightOff() to switch the flashlight on or off, according to the current alarm status. Loops until _runwatcher is set to false.

Returns: Nothing

Definition at line 148 of file alarmserverconnector.cpp.

AlarmServerConnector& AlarmNotifications::AlarmServerConnector::operator= ( const AlarmServerConnector & other )

delete

Copy assignment (deleted)

This class cannot be copied.

Parameters

other Another instance of AlarmServerConnector

Returns: Nothing (deleted)

AlarmServerConnector& AlarmNotifications::AlarmServerConnector::operator= ( AlarmServerConnector && other )

delete

Move assignment (C++11, deleted)

This class cannot be moved.

Parameters

other Another instance of AlarmServerConnector

Returns: Nothing (deleted)

void AlarmServerConnector::prepareDesktopNotification ( )

private

Select alarms to be included in a desktop notification.

Iterates over all entries in _statusmap and selects alarms to be included in a desktop notification. The alarm used have the corresponding flag in AlarmStatusEntry set.

As this method operates under a lock on _statusmapmutex held by checkStatusMap(), it has to be very quick. It therefore does only the selection work. The alarm entries to be used are collected in a vector that is passed to sendDesktopNotification() which is spawned as a separate thread.

Returns: Nothing

Definition at line 184 of file alarmserverconnector.cpp.

void AlarmServerConnector::prepareEMailNotification ( )

private

Select alarms to be included in an e-mail notification.

Iterates over all entries in _statusmap and selects alarms to be included in an e-mail notification. The alarm used have the corresponding flag in AlarmStatusEntry set.

As this method operates under a lock on _statusmapmutex held by checkStatusMap(), it has to be very quick. It therefore does only the selection work. The alarm entries to be used are collected in a vector that is passed to sendEMailNotification() which is spawned as a separate thread.

Returns: Nothing

Definition at line 234 of file alarmserverconnector.cpp.

void AlarmServerConnector::sendDesktopNotification ( const std::vector< AlarmStatusEntry > alarm )

private

Fire desktop notification.

This class recevies a list of alarm from prepareDesktopNotification() and puts them into a desktop notification. On systems with a libnotify version of at least 0.7, this API is used directly. On older versions, the library method notify_notification_new() requires a "GtkWidget* attach" pointer which is known to cause problems (this is why the parameter was removed from the API). On systems with the old version, a system() call is used to invoke the binary "notify-send" which is part of the libnotify package.

Parameters

alarm Alarms to be included in the notification.

Returns: Nothing

Definition at line 207 of file alarmserverconnector.cpp.

void AlarmServerConnector::sendEMailNotification ( const std::vector< AlarmStatusEntry > alarm )

private

Fire desktop notification.

This class recevies a list of alarm from prepareEMailNotification() and puts them into an e-mail notification. This is done by invoking EMailSender::sendAlarmNotification()

Parameters

alarm Alarms to be included in the notification.

Returns: Nothing

Definition at line 259 of file alarmserverconnector.cpp.

void AlarmServerConnector::startWatcher ( )

private

Start the watcher thread.

Invokes checkStatusMap every second as long as _runwatcher is true.

Returns: Nothing

Definition at line 112 of file alarmserverconnector.cpp.

void AlarmServerConnector::switchFlashLightOff ( )

private

Switch laboratory flashlight off.

Tell the hardware interface to disable the flashlight.

Returns: Nothing

Definition at line 175 of file alarmserverconnector.cpp.

void AlarmServerConnector::switchFlashLightOn ( )

private

Switch laboratory flashlight on.

Tell the hardware interface to enable the flashlight.

Returns: Nothing

Definition at line 166 of file alarmserverconnector.cpp.

Member Data Documentation

const bool AlarmNotifications::AlarmServerConnector::_activateBeedo

private

Beedo flag.

Flag to indicate if the Beedo engine should be used. If it's enabled, an opto-acoustic notification will be used in addition to the usual desktop notification.

Definition at line 93 of file alarmserverconnector.h.

CMSClient AlarmNotifications::AlarmServerConnector::_cmsclient

private

ActiveMQ client instance.

The instance of CMSClient, the interface to the Apache ActiveMQ message broker and the CSS alarm server.

Definition at line 99 of file alarmserverconnector.h.

const bool AlarmNotifications::AlarmServerConnector::_desktopVersion

private

Desktop version flag.

Flag to indicate if this instance is running as desktop version. In this case, laboratory and e-mail notifications are disabled.

Definition at line 87 of file alarmserverconnector.h.

boost::mutex AlarmNotifications::AlarmServerConnector::_flashlightmutex

private

Mutex to protect the flashlight accessed.

The hardware relais cannot be controlled concurrently be several threads, so this mutex is used to make sure that the hardware access is serialized.

Definition at line 119 of file alarmserverconnector.h.

bool AlarmNotifications::AlarmServerConnector::_flashlighton

private

Flashlight status flag.

This flag indicates whether the flashlight is currently flashing or not.

Definition at line 131 of file alarmserverconnector.h.

boost::thread AlarmNotifications::AlarmServerConnector::_flashlightthread

private

Flashlight operation thread.

This thread object will run the operateFlashLight() method that monitors the _statusmap and switch the flashlight on or off accordingly.

Definition at line 143 of file alarmserverconnector.h.

time_t AlarmNotifications::AlarmServerConnector::_oldestAlarm

private

Timestamp of oldest alarm in _statusmap.

The timestamp of the longest-active alarm is kept here so checkStatusMap() can calculate whether a notification should be fired. If no alarm is active at all, it is set to noAlarmActive.

Definition at line 149 of file alarmserverconnector.h.

bool AlarmNotifications::AlarmServerConnector::_runwatcher

private

Watcher thread abortion flag.

The destructor will set this flag to false, so the watcher and flashlight threads will exit their loops.

Definition at line 125 of file alarmserverconnector.h.

std::map<std::string, AlarmStatusEntry> AlarmNotifications::AlarmServerConnector::_statusmap

private

Map of active alarms.

All active alarms are listed in this map, where a string containing the PV name acts as key to the content encapsulated in the AlarmStatusEntry class.

As this class uses multithreading, access to this map (both read and write) must ALWAYS be protected by a lock on _statusmapmutex.

Definition at line 107 of file alarmserverconnector.h.

boost::mutex AlarmNotifications::AlarmServerConnector::_statusmapmutex

private

Mutex to protect the _statusmap.

Concurrent insert and erase operations on a std::map are not supported and may result in undefined behaviour or segfaults. Therefore, this mutex is always locked when _statusmap is accessed.

Definition at line 113 of file alarmserverconnector.h.

boost::thread AlarmNotifications::AlarmServerConnector::_watcher

private

Notification thread.

This thread object will run the startWatcher() method that checks the _statusmap for alarm being active for longer than the timeout and initiate the corresponding notifications.

Definition at line 137 of file alarmserverconnector.h.

const time_t AlarmNotifications::AlarmServerConnector::noAlarmActive = std::numeric_limits<long int>::min()

staticprivate

Time of last alarm if no alarm is active.

The parameter _oldestAlarm holds a Unix timestamp of the oldest alarm in statusmap. This is used to determine if a notification should be set off or not. To indicate that there isn't any alarm currently active, this class uses the minimum Unix timestamp value.

According to Linux Standard Base and <time.h>, time_t is a typedef to long int. This may cause problems on 32bit machines, so this header file will cause the compiler to issue a warning (see above). On 32bit systems, long int is 32 bit wide (as is int). This means, that there will be an integer overflow in time_t on Tue, 19. Jan 2038 03:14:07 UTC, where the signature bit will flip and the timestamp jump to Fri, 13. Dez 1901 20:45:52 UTC (year 2038 problem).

On 64bit machines, this problem does not exist because the Linux memory model defines long int as 64 bit wide there. The minimum value of a 64 bit Unix timestamp is aeons before the bing bang as beginning of space and time and the maximum value is in an (really) extreme distant future.

On modern compilers, this static const variable uses the C++-correct initialization by using std::numeric_limits. On older compilers that cannot deal with constexpr functions, a fallback to the LONG_MIN preprocessor macro is used.

Definition at line 78 of file alarmserverconnector.h.

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
