AlarmNotifications::CMSClient Class Reference

C++ Messaging Service client. More...

#include <cmsclient.h>

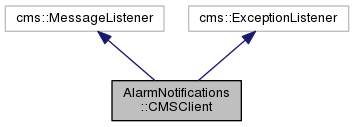

Inheritance diagram for AlarmNotifications::CMSClient:

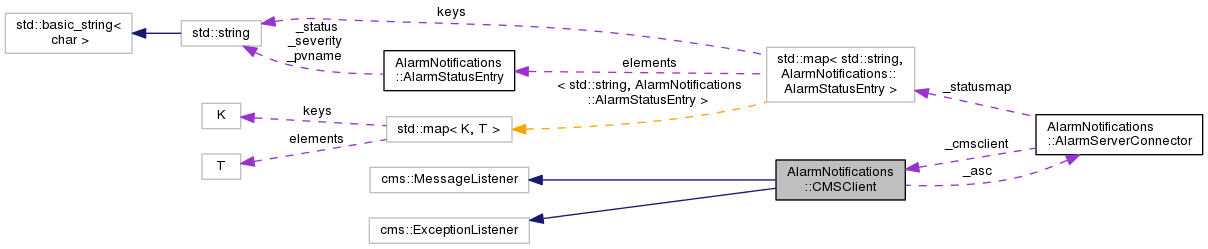

Collaboration diagram for AlarmNotifications::CMSClient:

Public Member Functions
	CMSClient (AlarmServerConnector &asc)
	Constructor. More...
	~CMSClient ()
	Destructor. More...
	CMSClient (const CMSClient &other)=delete
	Copy constructor (deleted) More...
	CMSClient (CMSClient &&other)=delete
	Move constructor (deleted) More...
CMSClient &	operator= (const CMSClient &other)=delete
	Copy assignment (deleted) More...
CMSClient &	operator= (CMSClient &&other)=delete
	Move assignment (deleted) More...

Private Member Functions
virtual void	onMessage (const cms::Message *message) noexcept
	Message listener. More...
virtual void	onException (const cms::CMSException &ex) noexcept
	Exception listener. More...

Private Attributes
AlarmServerConnector &	_asc
	AlarmServerConnector instance. More...
cms::Connection *	_connection
	CMS connection. More...
cms::Session *	_session
	CMS session. More...
cms::Destination *	_topicServer
	CMS topic. More...
cms::MessageConsumer *	_consumerServer
	CMS receiver. More...

Detailed Description

C++ Messaging Service client.

This class encapsulates the C++ API of the Apache ActiveMQ library. Apache ActiceMQ is an implementation of the Java Messaging Service standard used by the CSS (Control System Studio) Alarm Server. The activemq-cpp library's API is therefore called C++ Messaging Service (CMS).

This class connects to the Apache ActiveMQ message broker, subscribes to the topic of the CSS alarm server and receives all the messages there. The messages are then parsed, filtered and the relevant ones forwarded to AlarmServerConnector.

Definition at line 70 of file cmsclient.h.

Constructor & Destructor Documentation

CMSClient::CMSClient

(

AlarmServerConnector &

asc

)

Constructor.

Creates the necessary objects and connects to the Apache ActiveMQ message broker.

Parameters

asc	Reference to the AlarmServerConnector instance that should be notified when a relevant message arrives.

Exceptions

cms::CMSException	Something went wrong within Apache ActiveMQ
std::runtime_error	Initialization error

Definition at line 52 of file cmsclient.cpp.

CMSClient::~CMSClient

(

)

Destructor.

Closes the connection to the message broker and cleans everything up.

Definition at line 115 of file cmsclient.cpp.

AlarmNotifications::CMSClient::CMSClient ( const CMSClient &  other )

delete

Copy constructor (deleted)

This class cannot be copied.

Parameters

other

Another instance of CMSClient

AlarmNotifications::CMSClient::CMSClient ( CMSClient &&  other )

delete

Move constructor (deleted)

This class cannot be moved.

Parameters

other

Another instance of CMSClient

Member Function Documentation

void CMSClient::onException ( const cms::CMSException &  ex )

privatevirtualnoexcept

Exception listener.

This method will be called by the ActiveMQ library if an exception occurs in the messaging system

Parameters

ex	The CMS exception

Returns

Nothing

Definition at line 187 of file cmsclient.cpp.

void CMSClient::onMessage ( const cms::Message *  message )

privatevirtualnoexcept

Message listener.

This method will be called by the ActiveMQ library if a message is received from the message broker.

Parameters

message

CMS message object

Returns

Nothing

Definition at line 163 of file cmsclient.cpp.

CMSClient& AlarmNotifications::CMSClient::operator= ( const CMSClient &  other )

delete

Copy assignment (deleted)

This class cannot be copied.

Parameters

other

Another instance of CMSClient

Returns

Nothing (deleted)

CMSClient& AlarmNotifications::CMSClient::operator= ( CMSClient &&  other )

delete

Move assignment (deleted)

This class cannot be moved.

Parameters

other

Another instance of CMSClient

Returns

Nothing (deleted)

Member Data Documentation

AlarmServerConnector& AlarmNotifications::CMSClient::_asc

private

AlarmServerConnector instance.

Set by the constructor.

Definition at line 78 of file cmsclient.h.

cms::Connection* AlarmNotifications::CMSClient::_connection

private

CMS connection.

Connection to the C++ Messaging Service

Definition at line 84 of file cmsclient.h.

cms::MessageConsumer* AlarmNotifications::CMSClient::_consumerServer

private

CMS receiver.

Class to receive and parse the messages received from the ActiveMQ message broker

Definition at line 102 of file cmsclient.h.

cms::Session* AlarmNotifications::CMSClient::_session

private

CMS session.

Session on the C++ Messaging Service

Definition at line 90 of file cmsclient.h.

cms::Destination* AlarmNotifications::CMSClient::_topicServer

private

CMS topic.

Topic on the message broker, i.e. "name" of the "chatroom" where the CSS Alarm Server publishes its messages.

Definition at line 96 of file cmsclient.h.

---

The documentation for this class was generated from the following files:

• cmsclient.h
• cmsclient.cpp
