Abstract base class for desktop alarm widgets. More...

#include <desktopalarmwidget.h>

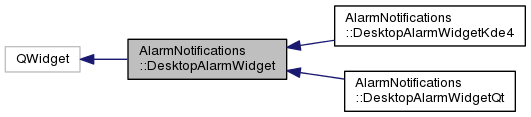

Inheritance diagram for AlarmNotifications::DesktopAlarmWidget:

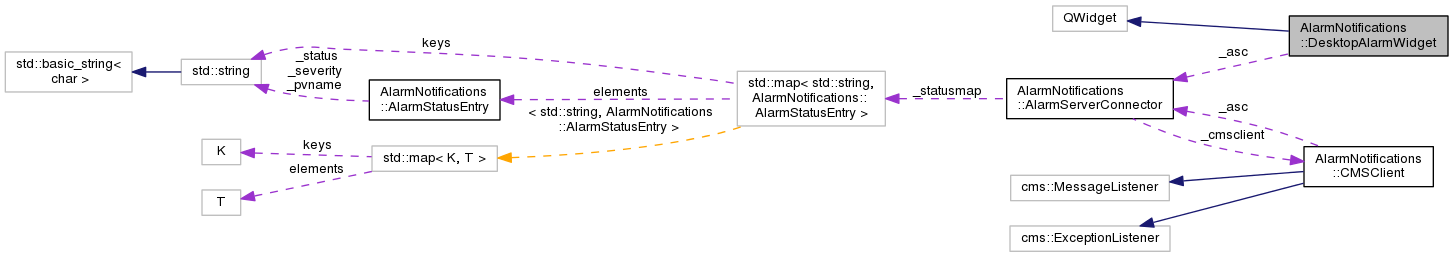

Collaboration diagram for AlarmNotifications::DesktopAlarmWidget:

Public Types
enum	DesktopAlarmWidgetStatus { ActiveOK = 0, ActiveAlarm = 1, Disabled = 2 }
	Status of the desktop widget. More...

Signals
void	alarmStatusChanged ()
	Alarm has been triggered or acknowledged. More...

void	notificationSwitchChanged (bool enabled)
	Widget has been enabled or disabled. More...

Public Member Functions
	DesktopAlarmWidget (const bool activateBeedo=false)
	Constructor. More...

virtual	~DesktopAlarmWidget ()
	Destructor. More...

	DesktopAlarmWidget (const DesktopAlarmWidget &other)=delete
	Copy constructor (deleted) More...

	DesktopAlarmWidget (DesktopAlarmWidget &&other)=delete
	Move constructor (C++11, deleted) More...

DesktopAlarmWidget &	operator= (const DesktopAlarmWidget &other)=delete
	Copy assignment (deleted) More...

DesktopAlarmWidget &	operator= (DesktopAlarmWidget &&other)=delete
	Move assignment (C++11, deleted) More...

Protected Slots
void	toggleNotifications ()
	Toggles the "main switch". More...

void	exitApplication ()
	Close the desktop widget. More...

virtual void	changeTrayIcon ()=0
	Change the tray icon due to status change. More...

void	configureNotificationTimeout ()
	Change timespan between alarm trigger and notification display. More...

virtual void	notificationSwitchChange (bool enabled)=0
	React on widget enable/disable. More...

Protected Member Functions
bool	getAlarmActive () const noexcept
	Show alarm active flag to derived class. More...

DesktopAlarmWidgetStatus	getStatus () const noexcept
	Query alarm status. More...

void	showStatusMessage ()
	Show status dialog box. More...

Private Member Functions
virtual void	createContextMenu ()=0
	Abstract context menu method. More...

void	observeAlarmStatus ()
	Thread to periodically check the status. More...

Private Attributes
const bool	_activateBeedo
	Beedo activation flag. More...

AlarmServerConnector *	_asc
	Pointer to the AlarmServerConnector instance. More...

bool	_run
	Thread run flag. More...

bool	_alarmActive
	Alarm flag. More...

QFuture< void >	_iconThread
	Alarm status observer thread. More...

boost::mutex	_ascmutex
	Protect access to the _asc pointer. More...

Detailed Description

Abstract base class for desktop alarm widgets.

This class provides most of the functionality for an application showing desktop notifications to the user when an alarm occurcs. The derived classes only have to provide the interface to the desktop environment to display a tray icon, status notifier item etc.

Definition at line 59 of file desktopalarmwidget.h.

Member Enumeration Documentation

enum AlarmNotifications::DesktopAlarmWidget::DesktopAlarmWidgetStatus

Status of the desktop widget.

The current status can be queried from the derived class by calling getStatus(). This status is used e.g. to display the correct icon in the notification area.

Enumerator

ActiveOK

Widget active, status OK.

The desktop widget is active and no alarm is present

ActiveAlarm

Widget active, status alarm.

The desktop widget is active and alarms are currently reported.

Disabled

Widget inactive.

The desktop widet is inactive, the connection to the alarm server has been closed.

Definition at line 68 of file desktopalarmwidget.h.

Constructor & Destructor Documentation

DesktopAlarmWidget::DesktopAlarmWidget ( const bool activateBeedo = false )

Constructor.

Instanciates an initial instance of AlarmServerConnector and spawns the _iconThread running observeAlarmStatus().

Parameters

activateBeedo Flag whether to use the Beedo engine

Definition at line 51 of file desktopalarmwidget.cpp.

DesktopAlarmWidget::~DesktopAlarmWidget ( )

virtual

Destructor.

Sets the _run flag to false and waits for _iconThread to finish.

Definition at line 65 of file desktopalarmwidget.cpp.

AlarmNotifications::DesktopAlarmWidget::DesktopAlarmWidget ( const DesktopAlarmWidget & other )

delete

Copy constructor (deleted)

This class cannot be copied.

Parameters

other Another instance of DesktopAlarmWidget

AlarmNotifications::DesktopAlarmWidget::DesktopAlarmWidget ( DesktopAlarmWidget && other )

delete

Move constructor (C++11, deleted)

This class cannot be moved.

Parameters

other Another instance of DesktopAlarmWidget

Member Function Documentation

void AlarmNotifications::DesktopAlarmWidget::alarmStatusChanged ( )

signal

Alarm has been triggered or acknowledged.

This signal is fired by the observeAlarmStatus() method/thread to notify derived classes about a status change.

Returns: Nothing

virtual void AlarmNotifications::DesktopAlarmWidget::changeTrayIcon ( )

protectedpure virtualslot

Change the tray icon due to status change.

This slot is connected to the alarmStatusChanged() signal in the constructor of this abstract base class. Derived classes must implement their logic to change the tray icon here, so that the icon always represents the current status.

Returns: Nothing

void DesktopAlarmWidget::configureNotificationTimeout ( )

protectedslot

Change timespan between alarm trigger and notification display.

Shows a window where the user can adjust the DesktopNotificationTimeout setting (see AlarmConfiguration). Derived classes should connect this slot to the appropriate item in their context menu.

Returns: Nothing

Definition at line 107 of file desktopalarmwidget.cpp.

virtual void AlarmNotifications::DesktopAlarmWidget::createContextMenu ( )

privatepure virtual

Abstract context menu method.

Derived classes must implement this method to create the context menu for their system tray icon or status notifier item. The context menu should provide an option to enable or disable the notifications via toggleNotifications(), change the timespan between alarm trigger and notification display via configureNotificationTimeout() and close the widget via exitApplication(). Also, a single click on the widget should call showStatusMessage() to display the current status.

Returns: void

Implemented in AlarmNotifications::DesktopAlarmWidgetKde4, and AlarmNotifications::DesktopAlarmWidgetQt.

void DesktopAlarmWidget::exitApplication ( )

protectedslot

Close the desktop widget.

This tells QApplication to stop the event loop which will cause QApplication::exec() to return in the main method. It will then exit and cause the destruction of all objects, including the derived desktop widget class. Derived classes should connect this slot to the appropriate item in their context menu.

Returns: Nothing

Definition at line 182 of file desktopalarmwidget.cpp.

bool AlarmNotifications::DesktopAlarmWidget::getAlarmActive ( ) const

inlineprotectednoexcept

Show alarm active flag to derived class.

Derived classes can access _alarmActive through this method. As this flag should only be changed by observeAlarmStatus(), the derived classes have read-only access.

Returns: bool

Definition at line 204 of file desktopalarmwidget.h.

DesktopAlarmWidget::DesktopAlarmWidgetStatus DesktopAlarmWidget::getStatus ( ) const

protectednoexcept

Query alarm status.

Returns the current status so derived classes can display the correct icon.

Returns: Item of the status enum

Definition at line 74 of file desktopalarmwidget.cpp.

virtual void AlarmNotifications::DesktopAlarmWidget::notificationSwitchChange ( bool enabled )

protectedpure virtualslot

React on widget enable/disable.

The constructor of this abstract base class connects this slot to the notificationSwitchChanged() signal. Derived classes must implement their logic to show the proper icon for a disabled alarm widget.

Parameters

enabled New status of the desktop alarm widget

Returns: Nothing

void AlarmNotifications::DesktopAlarmWidget::notificationSwitchChanged ( bool enabled )

signal

Widget has been enabled or disabled.

This signal is fired by the toggleNotifications() method to inform the base classes about a switch change.

Parameters

enabled New status of the desktop widget.

Returns: Nothing

void DesktopAlarmWidget::observeAlarmStatus ( )

private

Thread to periodically check the status.

This method runs in a separate thread controlled by _iconThread. It continously checks the current status and emits the signal alarmStatusChanged() if anything happens, so the derived classes can act accordingly.

Returns: void

Definition at line 187 of file desktopalarmwidget.cpp.

DesktopAlarmWidget& AlarmNotifications::DesktopAlarmWidget::operator= ( const DesktopAlarmWidget & other )

delete

Copy assignment (deleted)

This class cannot be copied.

Parameters

other Another instance of DesktopAlarmWidget

Returns: Nothing (deleted)

DesktopAlarmWidget& AlarmNotifications::DesktopAlarmWidget::operator= ( DesktopAlarmWidget && other )

delete

Move assignment (C++11, deleted)

This class cannot be moved.

Parameters

other Another instance of DesktopAlarmWidget

Returns: Nothing (deleted)

void DesktopAlarmWidget::showStatusMessage ( )

protected

Show status dialog box.

Shows a message box explaining the current status of the desktop alarm widget to the user.

Returns: Nothing

Definition at line 130 of file desktopalarmwidget.cpp.

void DesktopAlarmWidget::toggleNotifications ( )

protectedslot

Toggles the "main switch".

If the widget is currently active, it will disabled, and vice versa. When it is disabled, the instance of AlarmServerConnector will be destroyed and _asc set to nullptr. When it is enabled, a new instance of AlarmServerConnector will be created. Derived classes should connect this slot to the appropriate item in their context menu.

Returns: Nothing

Definition at line 91 of file desktopalarmwidget.cpp.

Member Data Documentation

const bool AlarmNotifications::DesktopAlarmWidget::_activateBeedo

private

Beedo activation flag.

Indicates whether to Beedo engine shall be used to provide opto-acoustic alarms. Forwarded to the constructor of AlarmServerConnector.

Definition at line 95 of file desktopalarmwidget.h.

bool AlarmNotifications::DesktopAlarmWidget::_alarmActive

private

Alarm flag.

Indicates whether there is a currently active alarm.

Definition at line 116 of file desktopalarmwidget.h.

AlarmServerConnector* AlarmNotifications::DesktopAlarmWidget::_asc

private

Pointer to the AlarmServerConnector instance.

The actual connection to the CSS Alarm Server and the displaying of desktop notifications is done in the AlarmServerConnector class. The initial instance is created in the constructor. When the desktop widget is disabled, the AlarmServerConnector instance is destroyed and the pointer set to nullptr. This is to close the connection to message broker and save resources when the messages from the alarm server are not needed anyway. When the desktop widget is re-enabled, a new instance is created.

As the pointer will be set to nullptr when the widget is disabled and this class uses multithreading, dereferencing and writing to this pointer must ALWAYS be protected by a lock on _ascmutex.

Definition at line 103 of file desktopalarmwidget.h.

boost::mutex AlarmNotifications::DesktopAlarmWidget::_ascmutex

private

Protect access to the _asc pointer.

Because the _asc pointer will be changed and set to nullptr in this multi-threaded class, a mutex must be used to protect access to the _asc pointer.

Definition at line 128 of file desktopalarmwidget.h.

QFuture<void> AlarmNotifications::DesktopAlarmWidget::_iconThread

private

Alarm status observer thread.

This thread runs the observeAlarmStatus() method that will periodically check the alarm status and signal the derived class on a status change.

Definition at line 122 of file desktopalarmwidget.h.

bool AlarmNotifications::DesktopAlarmWidget::_run

private

Thread run flag.

Set to true in the constructor before spawning _iconThread. When it is set to false, _iconThread will leave its loop and exit.

Definition at line 110 of file desktopalarmwidget.h.

The documentation for this class was generated from the following files:
