Desktop widget featuring an item in the KDE4 notification area. More...

#include <desktopalarmwidgetkde4.h>

Inheritance diagram for AlarmNotifications::DesktopAlarmWidgetKde4:

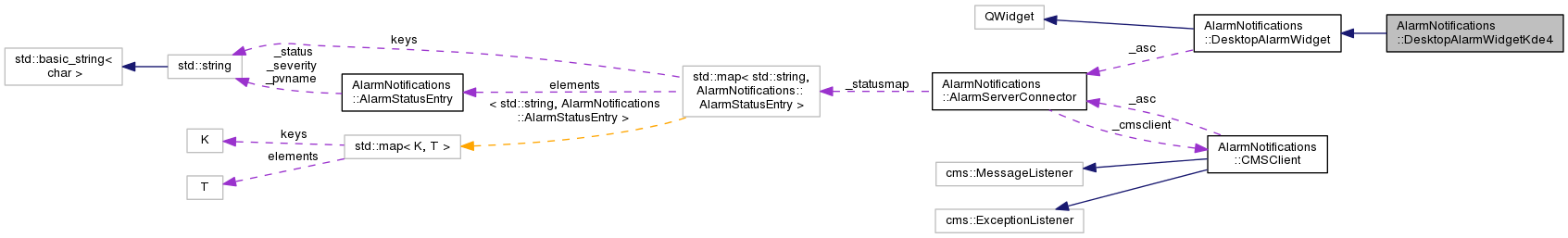

Collaboration diagram for AlarmNotifications::DesktopAlarmWidgetKde4:

Public Types
enum	DesktopAlarmWidgetStatus { ActiveOK = 0, ActiveAlarm = 1, Disabled = 2 }
	Status of the desktop widget. More...

Signals
void	alarmStatusChanged ()
	Alarm has been triggered or acknowledged. More...

void	notificationSwitchChanged (bool enabled)
	Widget has been enabled or disabled. More...

Public Member Functions
	DesktopAlarmWidgetKde4 ()
	Constructor. More...

	~DesktopAlarmWidgetKde4 ()
	Destructor. More...

	DesktopAlarmWidgetKde4 (const DesktopAlarmWidgetKde4 &other)=delete
	Copy constructor (deleted) More...

	DesktopAlarmWidgetKde4 (DesktopAlarmWidgetKde4 &&other)=delete
	Move constructor (C++11, deleted) More...

DesktopAlarmWidgetKde4 &	operator= (const DesktopAlarmWidgetKde4 &other)=delete
	Copy assignment (deleted) More...

DesktopAlarmWidgetKde4 &	operator= (DesktopAlarmWidgetKde4 &&other)=delete
	Move assignment (deleted) More...

Protected Slots
void	toggleNotifications ()
	Toggles the "main switch". More...

void	exitApplication ()
	Close the desktop widget. More...

void	configureNotificationTimeout ()
	Change timespan between alarm trigger and notification display. More...

Protected Member Functions
bool	getAlarmActive () const noexcept
	Show alarm active flag to derived class. More...

DesktopAlarmWidgetStatus	getStatus () const noexcept
	Query alarm status. More...

void	showStatusMessage ()
	Show status dialog box. More...

Private Slots
void	notificationSwitchChange (bool enabled)
	React on widget enable/disable. More...

void	changeTrayIcon ()
	Change the tray icon due to status change. More...

void	activated (bool active, const QPoint &pos)
	React on click on tray icon. More...

Private Member Functions
virtual void	createContextMenu ()
	Create context menu objects. More...

void	setStatusIconAndTooltip (DesktopAlarmWidgetStatus status)
	Adjust tray icon and tooltip message. More...

Static Private Member Functions
static bool	getBeedoActivated () noexcept
	Return compile-time Beedo activation flag. More...

Private Attributes
KStatusNotifierItem	_trayicon
	Tray icon object. More...

KMenu *	_contextmenu
	Tray icon context menu. More...

QAction *	_toggleAction
	Context menu entry to toggle the desktop widget. More...

QAction *	_configureAction
	Context menu entry to configure notification timeout. More...

QAction *	_exitAction
	Context menu entry to close the application. More...

Detailed Description

Desktop widget featuring an item in the KDE4 notification area.

This version of the desktop widget provides a KDE4 status notifier item which has extended capabilities in comparision to the pure QSystemTrayIcon provided by the class DesktopAlarmWidgetQt.

The KDE project has defined a new protocol for using the notification area: Application cannot draw their icon themselves anymore but they have to use inter-process communication via D-Bus to ask the desktop environment to do so. The advantage is that the applications cannot only draw an icon, but also provide a status. According to the status and the user's configuration the desktop enviroment can automatically show and hide icons to prevent overpopulation of the notification are.

This class uses this status system as follows: If everything is fine, the status is set to Passive what usually hides the icon. If the widget is disabled the status is set to Active an in case of an alarm the status is set to NeedsAttention what makes the icon not only visible but in addition blink.

Definition at line 57 of file desktopalarmwidgetkde4.h.

Member Enumeration Documentation

enum AlarmNotifications::DesktopAlarmWidget::DesktopAlarmWidgetStatus

inherited

Status of the desktop widget.

The current status can be queried from the derived class by calling getStatus(). This status is used e.g. to display the correct icon in the notification area.

Enumerator

ActiveOK

Widget active, status OK.

The desktop widget is active and no alarm is present

ActiveAlarm

Widget active, status alarm.

The desktop widget is active and alarms are currently reported.

Disabled

Widget inactive.

The desktop widet is inactive, the connection to the alarm server has been closed.

Definition at line 68 of file desktopalarmwidget.h.

Constructor & Destructor Documentation

DesktopAlarmWidgetKde4::DesktopAlarmWidgetKde4 ( )

Constructor.

Queries the Beedo activation, initializes the base class and sets up the KStatusNotifierItem.

Definition at line 38 of file desktopalarmwidgetkde4.cpp.

DesktopAlarmWidgetKde4::~DesktopAlarmWidgetKde4 ( )

Destructor.

Has nothing to do here, all work in done in the base class.

Definition at line 53 of file desktopalarmwidgetkde4.cpp.

AlarmNotifications::DesktopAlarmWidgetKde4::DesktopAlarmWidgetKde4 ( const DesktopAlarmWidgetKde4 & other )

delete

Copy constructor (deleted)

This class cannot be copied.

Parameters

other Another instance of DesktopAlarmWidgetKde4

AlarmNotifications::DesktopAlarmWidgetKde4::DesktopAlarmWidgetKde4 ( DesktopAlarmWidgetKde4 && other )

delete

Move constructor (C++11, deleted)

This class cannot be moved.

Parameters

other Another instance of DesktopAlarmWidgetKde4

Member Function Documentation

void DesktopAlarmWidgetKde4::activated	(	bool	active,
		const QPoint &	pos
	)

privateslot

React on click on tray icon.

This method is connected to the activateRequest signal of the KStatusNotifierItem and reacts on a click on the icon by invoking showStatusMessage() to display a message to the user.

Parameters

active	Activiation flag of the status item
pos	Position of the mouse pointer at the time of the click

Returns: Nothing

Definition at line 129 of file desktopalarmwidgetkde4.cpp.

void AlarmNotifications::DesktopAlarmWidget::alarmStatusChanged ( )

signalinherited

Alarm has been triggered or acknowledged.

This signal is fired by the observeAlarmStatus() method/thread to notify derived classes about a status change.

Returns: Nothing

void DesktopAlarmWidgetKde4::changeTrayIcon ( )

privateslot

Change the tray icon due to status change.

This slot is connected to the alarmStatusChanged() signal in the constructor of this abstract base class. This method reacts on a status change by exchanging the alarm icon.

Returns: Nothing

Definition at line 121 of file desktopalarmwidgetkde4.cpp.

void DesktopAlarmWidget::configureNotificationTimeout ( )

protectedslotinherited

Change timespan between alarm trigger and notification display.

Shows a window where the user can adjust the DesktopNotificationTimeout setting (see AlarmConfiguration). Derived classes should connect this slot to the appropriate item in their context menu.

Returns: Nothing

Definition at line 107 of file desktopalarmwidget.cpp.

void DesktopAlarmWidgetKde4::createContextMenu ( )

privatevirtual

Create context menu objects.

This method is called by the constructor and creates the _contextmenu and its entries.

Returns: Nothing

Implements AlarmNotifications::DesktopAlarmWidget.

Definition at line 58 of file desktopalarmwidgetkde4.cpp.

void DesktopAlarmWidget::exitApplication ( )

protectedslotinherited

Close the desktop widget.

This tells QApplication to stop the event loop which will cause QApplication::exec() to return in the main method. It will then exit and cause the destruction of all objects, including the derived desktop widget class. Derived classes should connect this slot to the appropriate item in their context menu.

Returns: Nothing

Definition at line 182 of file desktopalarmwidget.cpp.

bool AlarmNotifications::DesktopAlarmWidget::getAlarmActive ( ) const

inlineprotectednoexceptinherited

Show alarm active flag to derived class.

Derived classes can access _alarmActive through this method. As this flag should only be changed by observeAlarmStatus(), the derived classes have read-only access.

Returns: bool

Definition at line 204 of file desktopalarmwidget.h.

bool DesktopAlarmWidgetKde4::getBeedoActivated ( )

staticprivatenoexcept

Return compile-time Beedo activation flag.

The desktop widgets can be compiled in two flavours: The standard one just using desktop notifications and the "beamtime" flavour that uses the Beedo engine to provide an opto-acoustic notification, e.g. in a control room.

This static function makes the compile-time switch "-DBEEDO" accessible.

Returns: True if Beedo engine shall be activated.

Definition at line 136 of file desktopalarmwidgetkde4.cpp.

DesktopAlarmWidget::DesktopAlarmWidgetStatus DesktopAlarmWidget::getStatus ( ) const

protectednoexceptinherited

Query alarm status.

Returns the current status so derived classes can display the correct icon.

Returns: Item of the status enum

Definition at line 74 of file desktopalarmwidget.cpp.

void DesktopAlarmWidgetKde4::notificationSwitchChange ( bool enabled )

privateslot

React on widget enable/disable.

The constructor of this abstract base class connects this slot to the notificationSwitchChanged() signal. This method reacts on such a change by switching the icon.

Parameters

enabled New status of the desktop alarm widget

Returns: Nothing

Definition at line 105 of file desktopalarmwidgetkde4.cpp.

void AlarmNotifications::DesktopAlarmWidget::notificationSwitchChanged ( bool enabled )

signalinherited

Widget has been enabled or disabled.

This signal is fired by the toggleNotifications() method to inform the base classes about a switch change.

Parameters

enabled New status of the desktop widget.

Returns: Nothing

DesktopAlarmWidgetKde4& AlarmNotifications::DesktopAlarmWidgetKde4::operator= ( const DesktopAlarmWidgetKde4 & other )

delete

Copy assignment (deleted)

This class cannot be copied.

Parameters

other Another instance of DesktopAlarmWidgetKde4

Returns: Nothing (deleted)

DesktopAlarmWidgetKde4& AlarmNotifications::DesktopAlarmWidgetKde4::operator= ( DesktopAlarmWidgetKde4 && other )

delete

Move assignment (deleted)

This class cannot be moved.

Parameters

other Another instance of DesktopAlarmWidgetKde4

Returns: Nothing (deleted)

void DesktopAlarmWidgetKde4::setStatusIconAndTooltip ( DesktopAlarmWidget::DesktopAlarmWidgetStatus status )

private

Adjust tray icon and tooltip message.

This method is called internally when this derived class is notified by the base class of a status change. It will load and display the proper icon for the new status and also adjust the tooltip message to tell the user about the alarm status.

Parameters

status New status of the alarm widget

Returns: Nothing

Definition at line 82 of file desktopalarmwidgetkde4.cpp.

void DesktopAlarmWidget::showStatusMessage ( )

protectedinherited

Show status dialog box.

Shows a message box explaining the current status of the desktop alarm widget to the user.

Returns: Nothing

Definition at line 130 of file desktopalarmwidget.cpp.

void DesktopAlarmWidget::toggleNotifications ( )

protectedslotinherited

Toggles the "main switch".

If the widget is currently active, it will disabled, and vice versa. When it is disabled, the instance of AlarmServerConnector will be destroyed and _asc set to nullptr. When it is enabled, a new instance of AlarmServerConnector will be created. Derived classes should connect this slot to the appropriate item in their context menu.

Returns: Nothing

Definition at line 91 of file desktopalarmwidget.cpp.

Member Data Documentation

QAction* AlarmNotifications::DesktopAlarmWidgetKde4::_configureAction

private

Context menu entry to configure notification timeout.

Using this action in the context menu, the user can configure the timespan between the occurence of an alarm and the display of a notification.

Definition at line 84 of file desktopalarmwidgetkde4.h.

KMenu* AlarmNotifications::DesktopAlarmWidgetKde4::_contextmenu

private

Tray icon context menu.

The menu opened by a right click on the tray icon.

Definition at line 72 of file desktopalarmwidgetkde4.h.

QAction* AlarmNotifications::DesktopAlarmWidgetKde4::_exitAction

private

Context menu entry to close the application.

Using this action in the context menu, the user can close the AlarmNotifications desktop widget.

Definition at line 90 of file desktopalarmwidgetkde4.h.

QAction* AlarmNotifications::DesktopAlarmWidgetKde4::_toggleAction

private

Context menu entry to toggle the desktop widget.

Using this action in the context menu, the user can switch notifications on and off.

Definition at line 78 of file desktopalarmwidgetkde4.h.

KStatusNotifierItem AlarmNotifications::DesktopAlarmWidgetKde4::_trayicon

private

Tray icon object.

Creates an icon in the notification area by using the new DBus-based protocotol defined by KDE.

Definition at line 66 of file desktopalarmwidgetkde4.h.

The documentation for this class was generated from the following files:
