Desktop widget featuring a Qt system tray icon. More...

#include <desktopalarmwidgetqt.h>

Inheritance diagram for AlarmNotifications::DesktopAlarmWidgetQt:

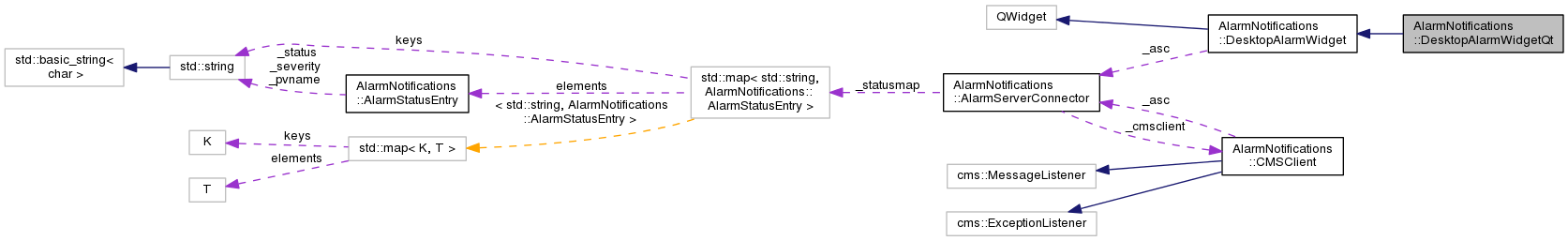

Collaboration diagram for AlarmNotifications::DesktopAlarmWidgetQt:

Public Types
enum	DesktopAlarmWidgetStatus { ActiveOK = 0, ActiveAlarm = 1, Disabled = 2 }
	Status of the desktop widget. More...

Signals
void	alarmStatusChanged ()
	Alarm has been triggered or acknowledged. More...

void	notificationSwitchChanged (bool enabled)
	Widget has been enabled or disabled. More...

Public Member Functions
	DesktopAlarmWidgetQt ()
	Constructor. More...

	~DesktopAlarmWidgetQt ()
	Destructor. More...

	DesktopAlarmWidgetQt (const DesktopAlarmWidgetQt &other)=delete
	Copy constructor (deleted) More...

	DesktopAlarmWidgetQt (DesktopAlarmWidgetQt &&other)=delete
	Move constructor (C++11, deleted) More...

DesktopAlarmWidgetQt &	operator= (const DesktopAlarmWidgetQt &other)=delete
	Copy assignment (deleted) More...

DesktopAlarmWidgetQt &	operator= (DesktopAlarmWidgetQt &&other)=delete
	Move assignment (deleted) More...

Protected Slots
void	toggleNotifications ()
	Toggles the "main switch". More...

void	exitApplication ()
	Close the desktop widget. More...

void	configureNotificationTimeout ()
	Change timespan between alarm trigger and notification display. More...

Protected Member Functions
bool	getAlarmActive () const noexcept
	Show alarm active flag to derived class. More...

DesktopAlarmWidgetStatus	getStatus () const noexcept
	Query alarm status. More...

void	showStatusMessage ()
	Show status dialog box. More...

Private Slots
void	activated (const QSystemTrayIcon::ActivationReason reason)
	React on click on tray icon. More...

virtual void	notificationSwitchChange (bool enabled)
	React on widget enable/disable. More...

virtual void	changeTrayIcon ()
	Change the tray icon due to status change. More...

Private Member Functions
virtual void	createContextMenu ()
	Create context menu objects. More...

void	setStatusIcon (DesktopAlarmWidgetStatus status)
	Adjust tray icon. More...

Static Private Member Functions
static bool	getBeedoActivated () noexcept
	Return compile-time Beedo activation flag. More...

Private Attributes
QSystemTrayIcon	_trayicon
	Tray icon object. More...

QMenu *	_contextmenu
	Tray icon context menu. More...

QAction *	_toggleAction
	Context menu entry to toggle the desktop widget. More...

QAction *	_configureAction
	Context menu entry to configure notification timeout. More...

QAction *	_exitAction
	Context menu entry to close the application. More...

Detailed Description

Desktop widget featuring a Qt system tray icon.

This class implements the DesktopAlarmWidget interface by using a QSystemTrayIcon. This implementation should work on almost any desktop operating system supported by Qt. The main work is done in the base class, this class does only the interaction with the GUI.

Users of a recent version of KDE4 may prefer the status notifier item provided by DesktopAlarmWidgetKde4.

Definition at line 53 of file desktopalarmwidgetqt.h.

Member Enumeration Documentation

enum AlarmNotifications::DesktopAlarmWidget::DesktopAlarmWidgetStatus

inherited

Status of the desktop widget.

The current status can be queried from the derived class by calling getStatus(). This status is used e.g. to display the correct icon in the notification area.

Enumerator

ActiveOK

Widget active, status OK.

The desktop widget is active and no alarm is present

ActiveAlarm

Widget active, status alarm.

The desktop widget is active and alarms are currently reported.

Disabled

Widget inactive.

The desktop widet is inactive, the connection to the alarm server has been closed.

Definition at line 68 of file desktopalarmwidget.h.

Constructor & Destructor Documentation

DesktopAlarmWidgetQt::DesktopAlarmWidgetQt ( )

Constructor.

Queries the Beedo activation, initializes the base class and sets up the QSystemTrayIcon.

Definition at line 41 of file desktopalarmwidgetqt.cpp.

DesktopAlarmWidgetQt::~DesktopAlarmWidgetQt ( )

Destructor.

Has nothing to do here, all work in done in the base class.

Definition at line 54 of file desktopalarmwidgetqt.cpp.

AlarmNotifications::DesktopAlarmWidgetQt::DesktopAlarmWidgetQt ( const DesktopAlarmWidgetQt & other )

delete

Copy constructor (deleted)

This class cannot be copied.

Parameters

other Another instance of DesktopAlarmWidgetQt

AlarmNotifications::DesktopAlarmWidgetQt::DesktopAlarmWidgetQt ( DesktopAlarmWidgetQt && other )

delete

Move constructor (C++11, deleted)

This class cannot be moved.

Parameters

other Another instance of DesktopAlarmWidgetQt

Member Function Documentation

void DesktopAlarmWidgetQt::activated ( const QSystemTrayIcon::ActivationReason reason )

privateslot

React on click on tray icon.

This method is connected to the activated signal of the QSystemTrayIcon and reacts on a click on the icon by invoking showStatusMessage() to display a message to the user.

Parameters

reason Type of interaction as defined within Qt

Returns: Nothing

Definition at line 101 of file desktopalarmwidgetqt.cpp.

void AlarmNotifications::DesktopAlarmWidget::alarmStatusChanged ( )

signalinherited

Alarm has been triggered or acknowledged.

This signal is fired by the observeAlarmStatus() method/thread to notify derived classes about a status change.

Returns: Nothing

void DesktopAlarmWidgetQt::changeTrayIcon ( )

privatevirtualslot

Change the tray icon due to status change.

This slot is connected to the alarmStatusChanged() signal in the constructor of this abstract base class. This method reacts on a status change by exchanging the alarm icon.

Returns: Nothing

Definition at line 124 of file desktopalarmwidgetqt.cpp.

void DesktopAlarmWidget::configureNotificationTimeout ( )

protectedslotinherited

Change timespan between alarm trigger and notification display.

Shows a window where the user can adjust the DesktopNotificationTimeout setting (see AlarmConfiguration). Derived classes should connect this slot to the appropriate item in their context menu.

Returns: Nothing

Definition at line 107 of file desktopalarmwidget.cpp.

void DesktopAlarmWidgetQt::createContextMenu ( )

privatevirtual

Create context menu objects.

This method is called by the constructor and creates the _contextmenu and its entries.

Returns: Nothing

Implements AlarmNotifications::DesktopAlarmWidget.

Definition at line 76 of file desktopalarmwidgetqt.cpp.

void DesktopAlarmWidget::exitApplication ( )

protectedslotinherited

Close the desktop widget.

This tells QApplication to stop the event loop which will cause QApplication::exec() to return in the main method. It will then exit and cause the destruction of all objects, including the derived desktop widget class. Derived classes should connect this slot to the appropriate item in their context menu.

Returns: Nothing

Definition at line 182 of file desktopalarmwidget.cpp.

bool AlarmNotifications::DesktopAlarmWidget::getAlarmActive ( ) const

inlineprotectednoexceptinherited

Show alarm active flag to derived class.

Derived classes can access _alarmActive through this method. As this flag should only be changed by observeAlarmStatus(), the derived classes have read-only access.

Returns: bool

Definition at line 204 of file desktopalarmwidget.h.

bool DesktopAlarmWidgetQt::getBeedoActivated ( )

staticprivatenoexcept

Return compile-time Beedo activation flag.

The desktop widgets can be compiled in two flavours: The standard one just using desktop notifications and the "beamtime" flavour that uses the Beedo engine to provide an opto-acoustic notification, e.g. in a control room.

This static function makes the compile-time switch "-DBEEDO" accessible.

Returns: True if Beedo engine shall be activated.

Definition at line 132 of file desktopalarmwidgetqt.cpp.

DesktopAlarmWidget::DesktopAlarmWidgetStatus DesktopAlarmWidget::getStatus ( ) const

protectednoexceptinherited

Query alarm status.

Returns the current status so derived classes can display the correct icon.

Returns: Item of the status enum

Definition at line 74 of file desktopalarmwidget.cpp.

void DesktopAlarmWidgetQt::notificationSwitchChange ( bool enabled )

privatevirtualslot

React on widget enable/disable.

The constructor of this abstract base class connects this slot to the notificationSwitchChanged() signal. This method reacts on such a change by switching the icon.

Parameters

enabled New status of the desktop alarm widget

Returns: Nothing

Definition at line 108 of file desktopalarmwidgetqt.cpp.

void AlarmNotifications::DesktopAlarmWidget::notificationSwitchChanged ( bool enabled )

signalinherited

Widget has been enabled or disabled.

This signal is fired by the toggleNotifications() method to inform the base classes about a switch change.

Parameters

enabled New status of the desktop widget.

Returns: Nothing

DesktopAlarmWidgetQt& AlarmNotifications::DesktopAlarmWidgetQt::operator= ( const DesktopAlarmWidgetQt & other )

delete

Copy assignment (deleted)

This class cannot be copied.

Parameters

other Another instance of DesktopAlarmWidgetQt

Returns: Nothing (deleted)

DesktopAlarmWidgetQt& AlarmNotifications::DesktopAlarmWidgetQt::operator= ( DesktopAlarmWidgetQt && other )

delete

Move assignment (deleted)

This class cannot be moved.

Parameters

other Another instance of DesktopAlarmWidgetQt

Returns: Nothing (deleted)

void DesktopAlarmWidgetQt::setStatusIcon ( DesktopAlarmWidget::DesktopAlarmWidgetStatus status )

private

Adjust tray icon.

This method is called internally when this derived class is notified by the base class of a status change. It will load and display the proper icon for the new status.

Parameters

status New status of the alarm widget

Returns: Nothing

Definition at line 59 of file desktopalarmwidgetqt.cpp.

void DesktopAlarmWidget::showStatusMessage ( )

protectedinherited

Show status dialog box.

Shows a message box explaining the current status of the desktop alarm widget to the user.

Returns: Nothing

Definition at line 130 of file desktopalarmwidget.cpp.

void DesktopAlarmWidget::toggleNotifications ( )

protectedslotinherited

Toggles the "main switch".

If the widget is currently active, it will disabled, and vice versa. When it is disabled, the instance of AlarmServerConnector will be destroyed and _asc set to nullptr. When it is enabled, a new instance of AlarmServerConnector will be created. Derived classes should connect this slot to the appropriate item in their context menu.

Returns: Nothing

Definition at line 91 of file desktopalarmwidget.cpp.

Member Data Documentation

QAction* AlarmNotifications::DesktopAlarmWidgetQt::_configureAction

private

Context menu entry to configure notification timeout.

Using this action in the context menu, the user can configure the timespan between the occurence of an alarm and the display of a notification.

Definition at line 80 of file desktopalarmwidgetqt.h.

QMenu* AlarmNotifications::DesktopAlarmWidgetQt::_contextmenu

private

Tray icon context menu.

The menu opened by a right click on the tray icon.

Definition at line 68 of file desktopalarmwidgetqt.h.

QAction* AlarmNotifications::DesktopAlarmWidgetQt::_exitAction

private

Context menu entry to close the application.

Using this action in the context menu, the user can close the AlarmNotifications desktop widget.

Definition at line 86 of file desktopalarmwidgetqt.h.

QAction* AlarmNotifications::DesktopAlarmWidgetQt::_toggleAction

private

Context menu entry to toggle the desktop widget.

Using this action in the context menu, the user can switch notifications on and off.

Definition at line 74 of file desktopalarmwidgetqt.h.

QSystemTrayIcon AlarmNotifications::DesktopAlarmWidgetQt::_trayicon

private

Tray icon object.

Creates an icon in the sytem tray or notification area.

Definition at line 62 of file desktopalarmwidgetqt.h.

The documentation for this class was generated from the following files:
